Price range: $49.95 through $59.95
Pulley-carabiner that facilitates installation on anchors and devices
Pulley-carabiner that facilitates installation of the rope when pulley is connected to the anchor.

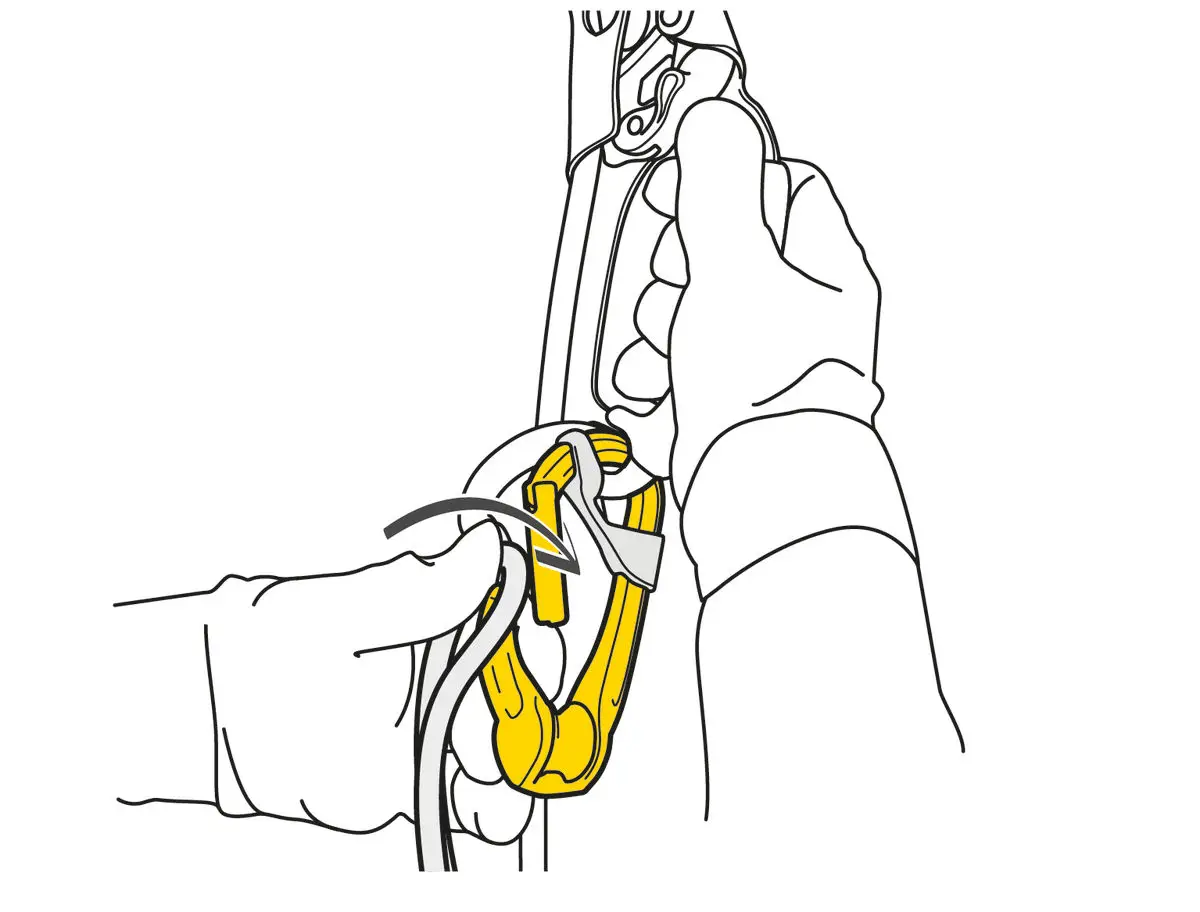

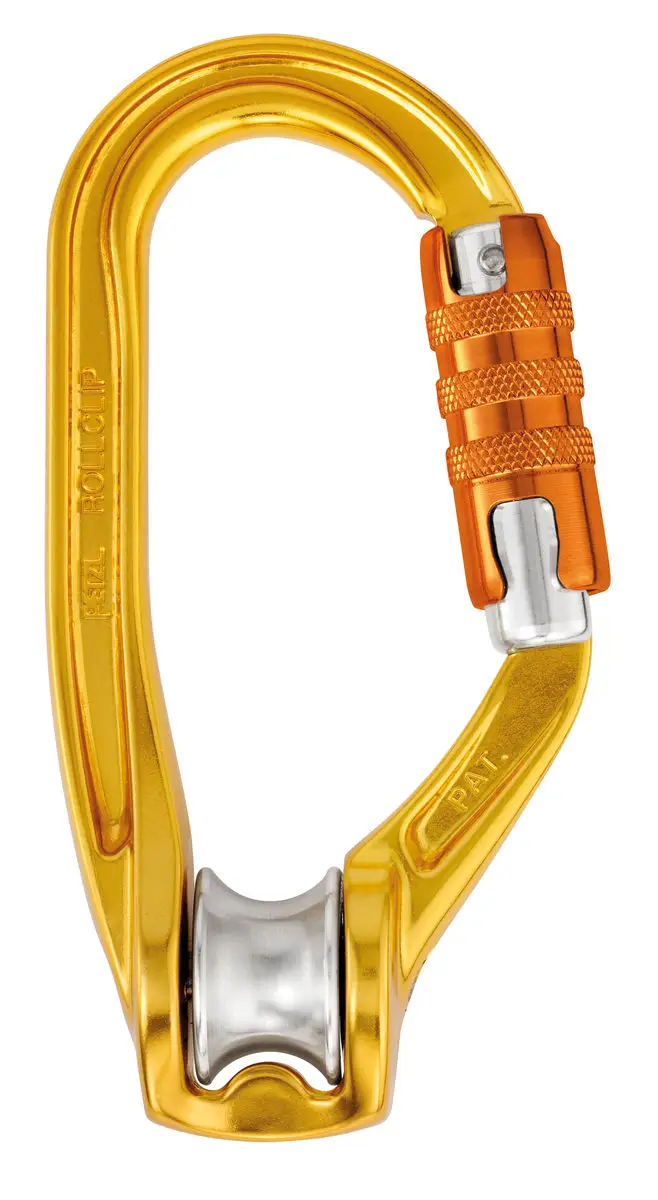

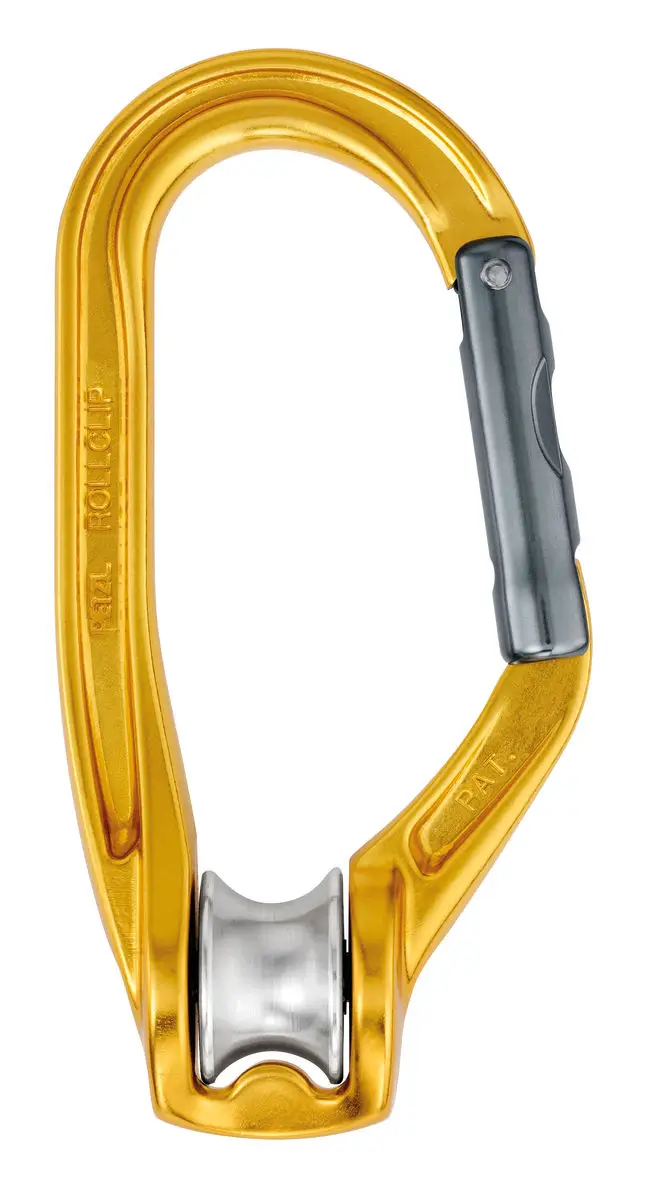

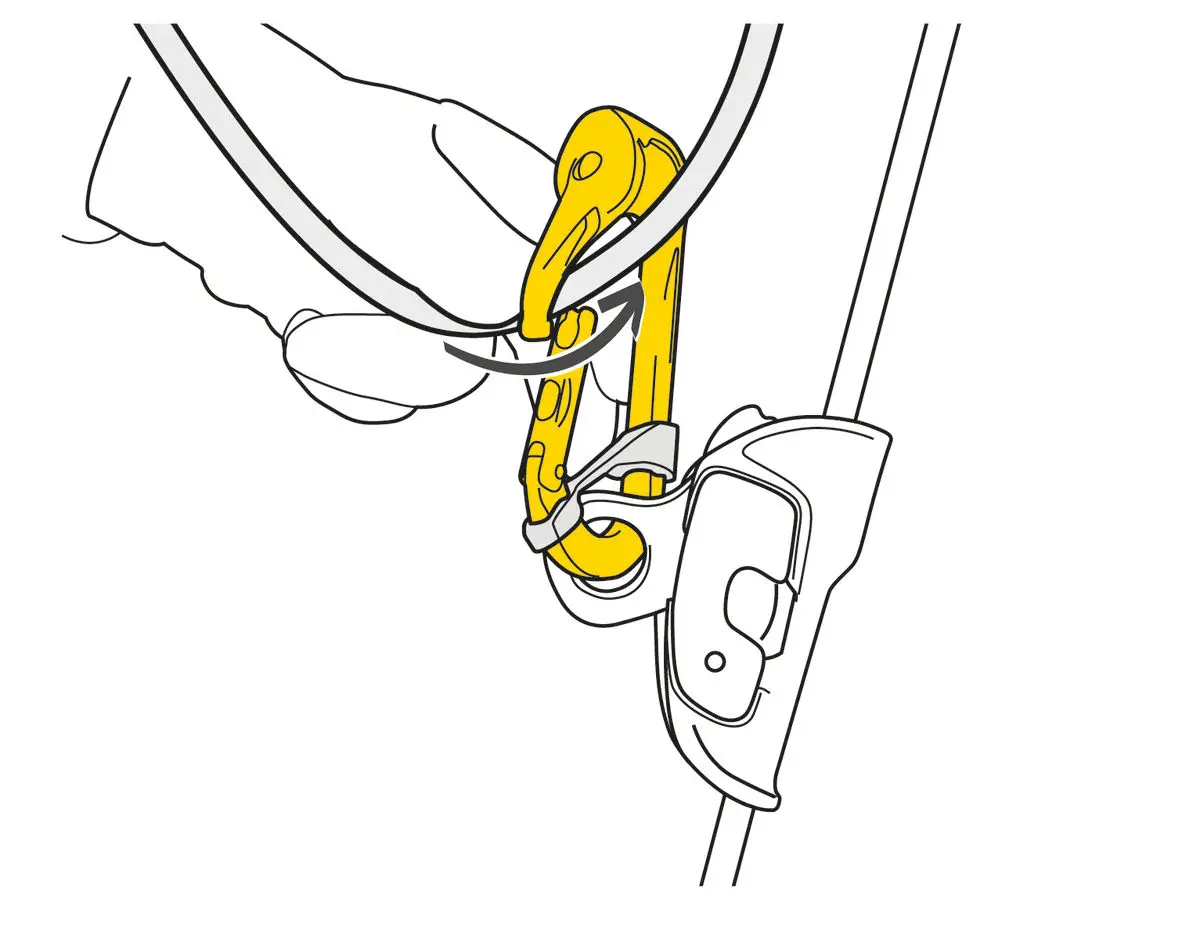

Rollclip A features a gate opening on the pulley side.

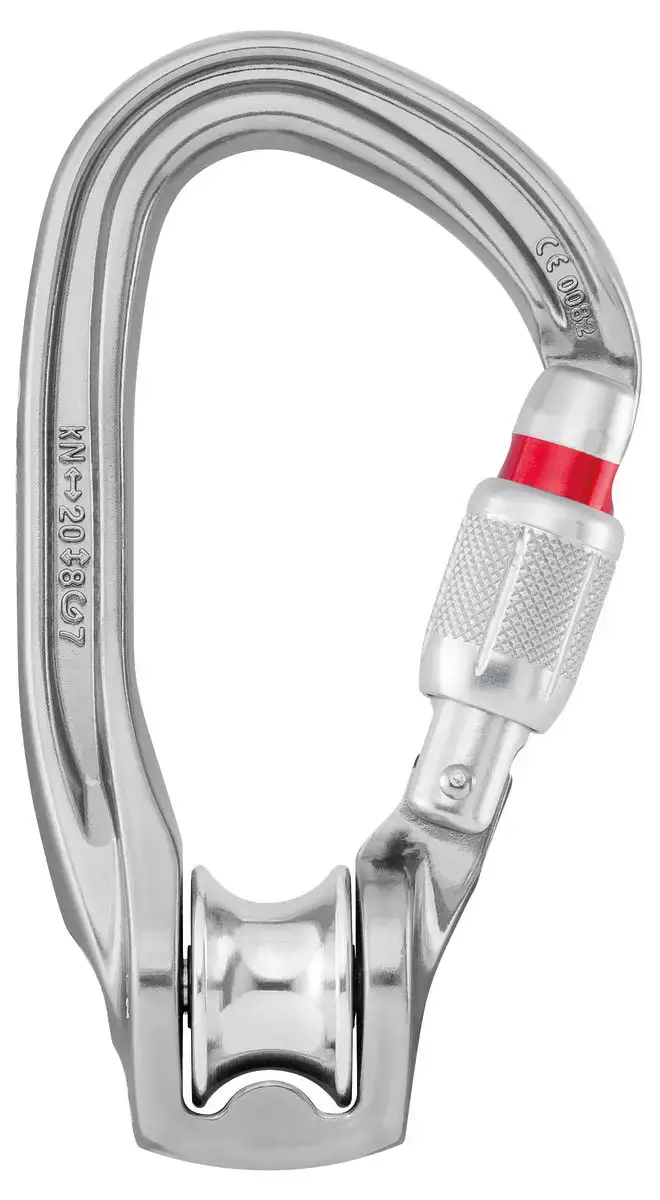

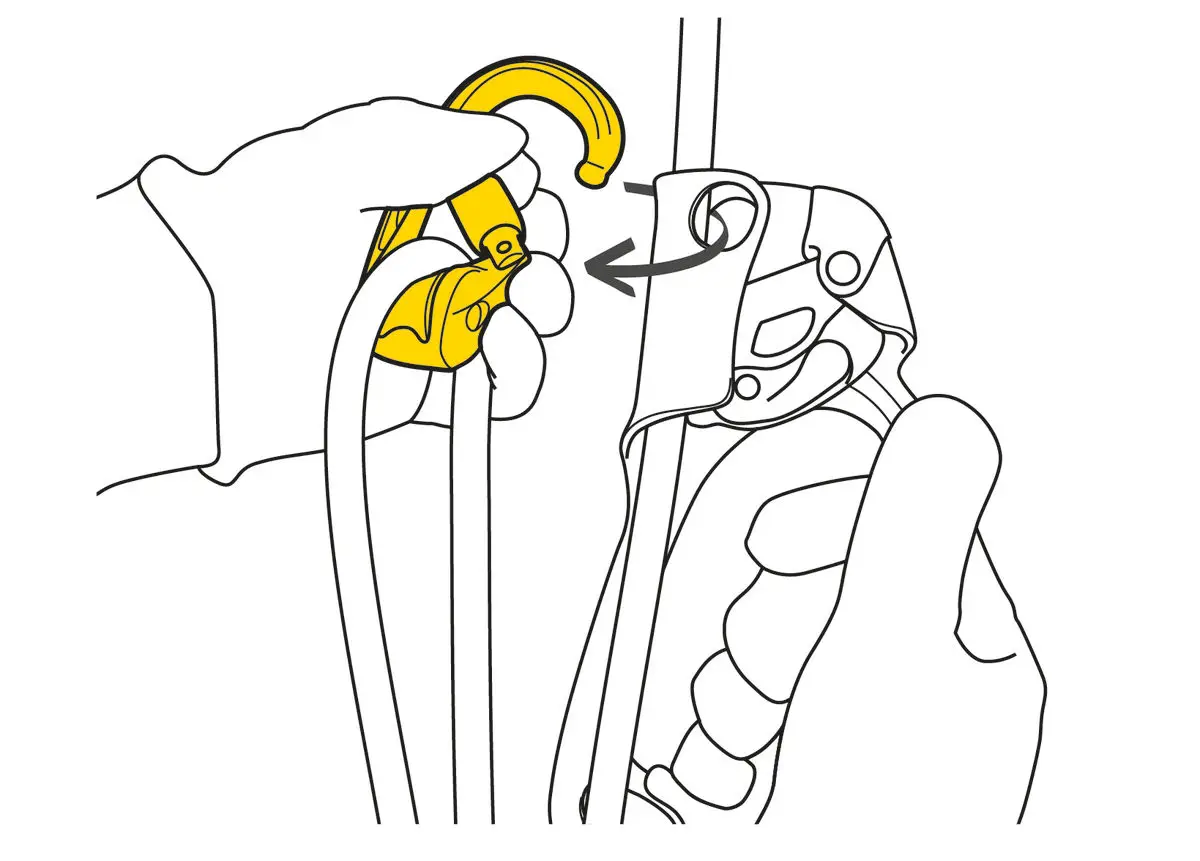

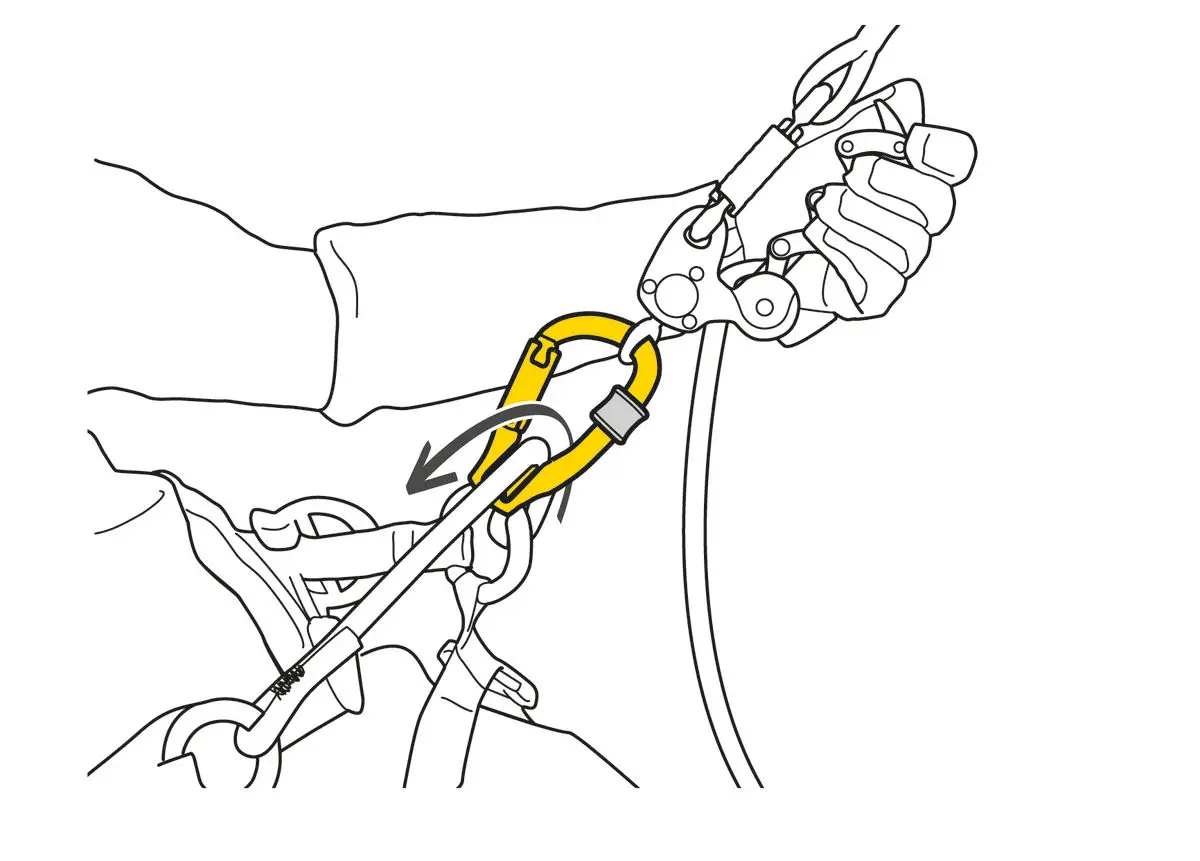

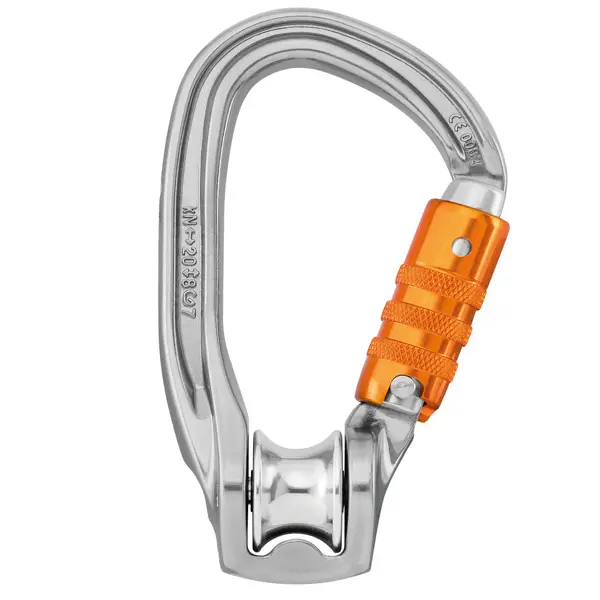

Rollclip Z features a gate opening on the non-pulley side.
| Opening | Pulley side (Rollclip A), Non-pulley side (Rollclip Z) |
|---|---|
| Gate | Non-locking, TRIACT-LOCK, Screw-Lock |
| Features (Rollclip A) | Easier handling: – sheave mounted on sealed ball bearings for excellent efficiency – gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor – may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping – Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place H cross-section of carabiner: – ensures an improved strength-to-weight ratio – protects markings from abrasion Available in versions with or without TRIACT-LOCK locking system |
| Features (Rollclip Z) | Easier handling: – sheave mounted on sealed ball bearings for excellent efficiency – gate opening on the non-pulley side, to facilitate installation on devices – Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place H cross-section of carabiner: – ensures an improved strength-to-weight ratio – protects markings from abrasion Two locking systems available: – TRIACT-LOCK: automatic locking with triple-action gate opening – SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked |
| Specifications | -Material(s): aluminum -Min. rope diameter: 7 mm -Max. rope diameter: 13 mm -Sheave diameter: 18 mm -Maximum working load: 2 x 2 = 4 kN -Efficiency: 85 % -Major axis strength: 20 kN -Minor axis strength: 8 kN -Open gate strength: 7 kN |
