$164.95

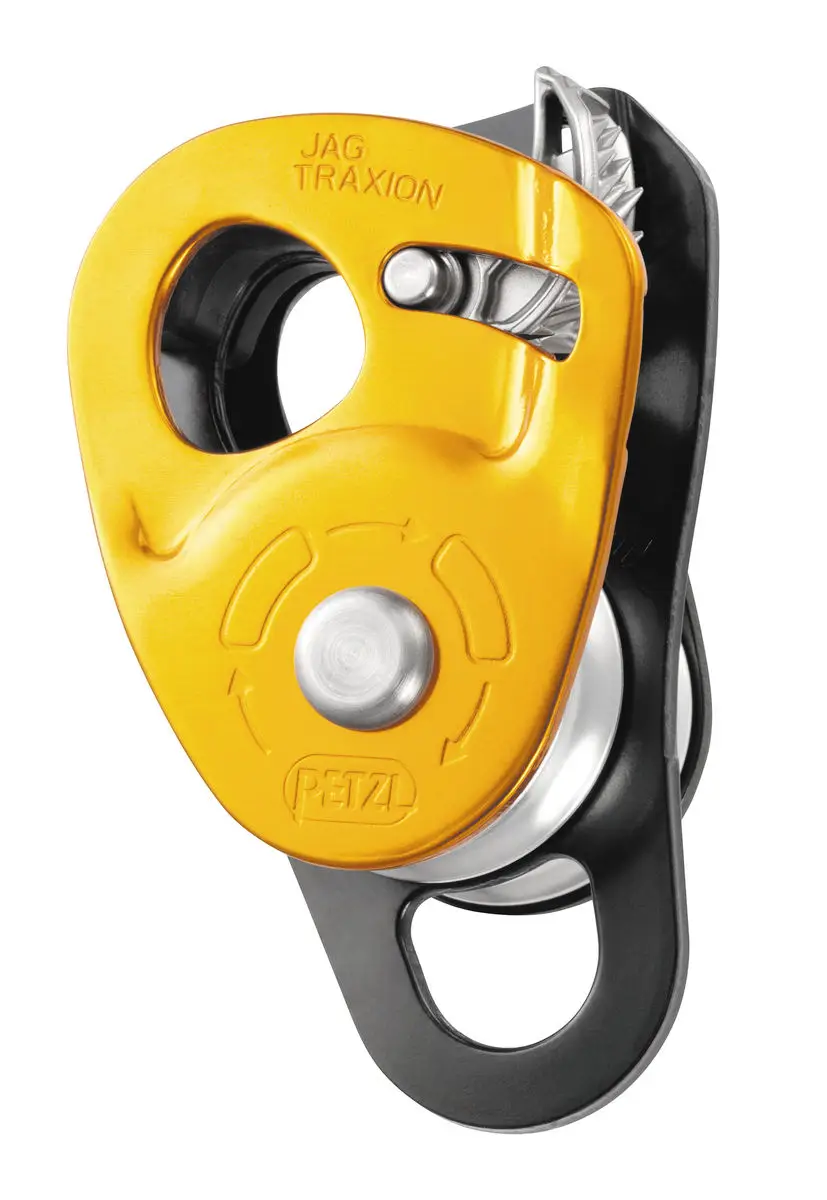

High-efficiency double progress capture pulley
The JAG TRAXION double progress capture pulley is designed for use with the JAG pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.
| Features | #NAME? |
|---|---|
| Specifications | -Weight: 145 g -Certification(s): CE EN 567, UKCA, NFPA 1983 Technical Use -Material(s): aluminum, nylon -Min. rope diameter: 8 mm -Max. rope diameter: 11 mm -Sheave type: sealed ball bearings -Sheave diameter: 25 mm -Maximum working load: 2 × 1,5 kN × 2 = 6 kN -Breaking strength: 2 × 4 kN × 2 = 16 kN -Efficiency: 91 % |
Additional Resources
